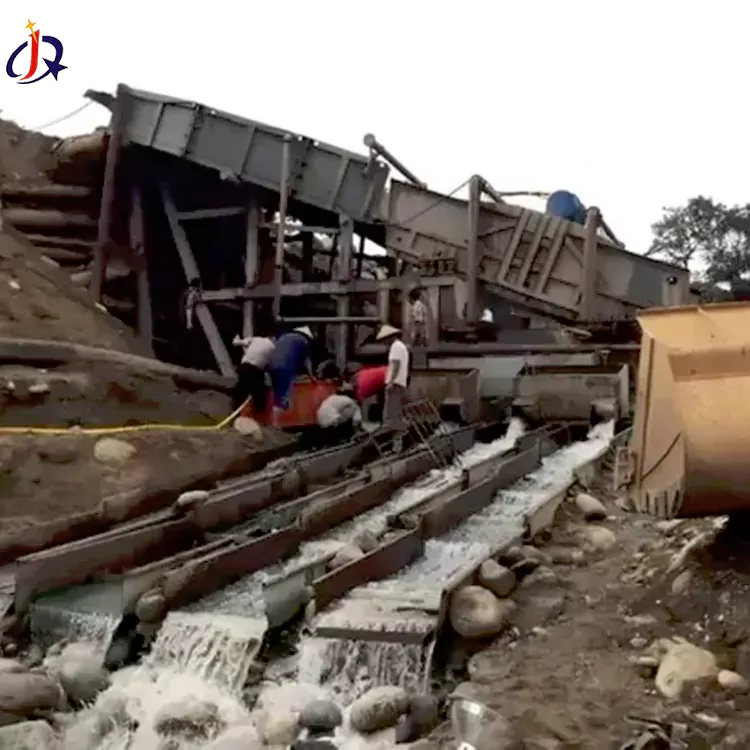

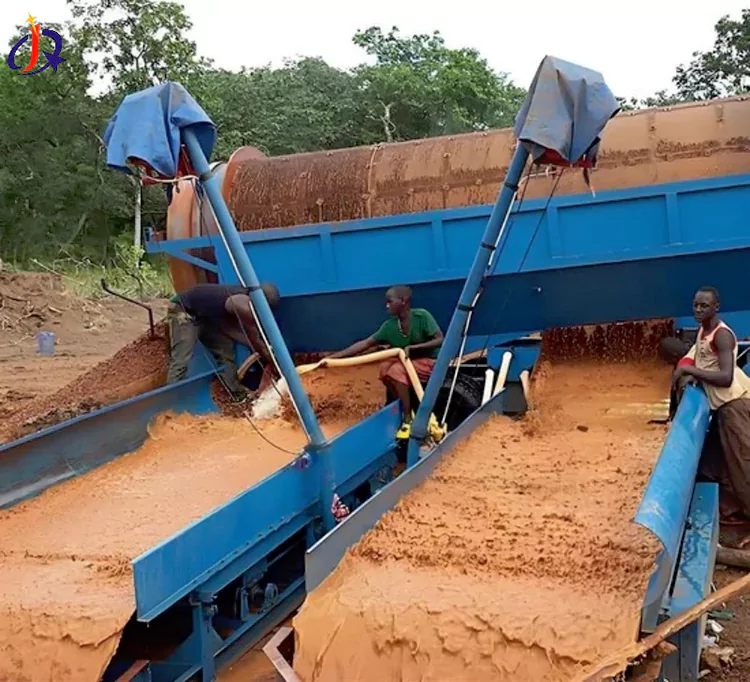

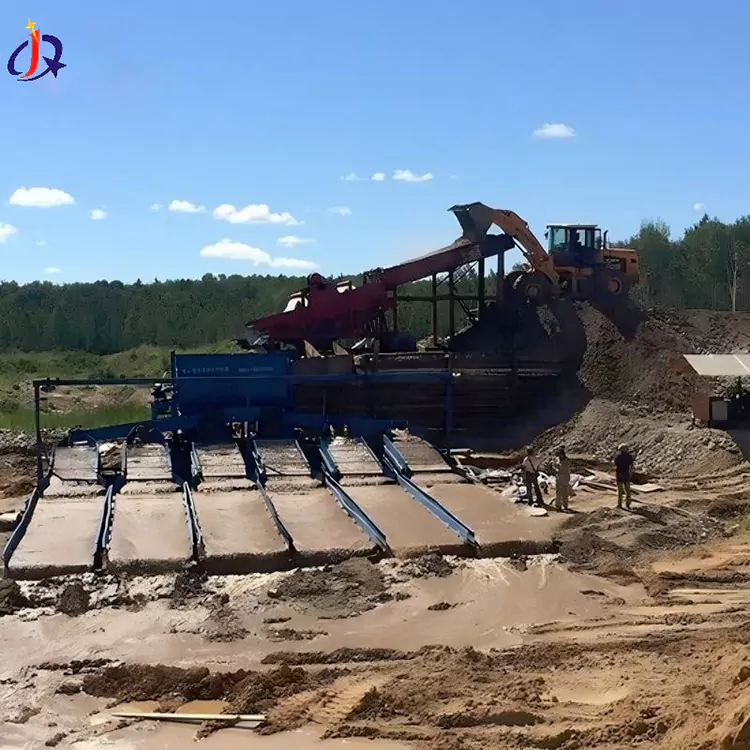

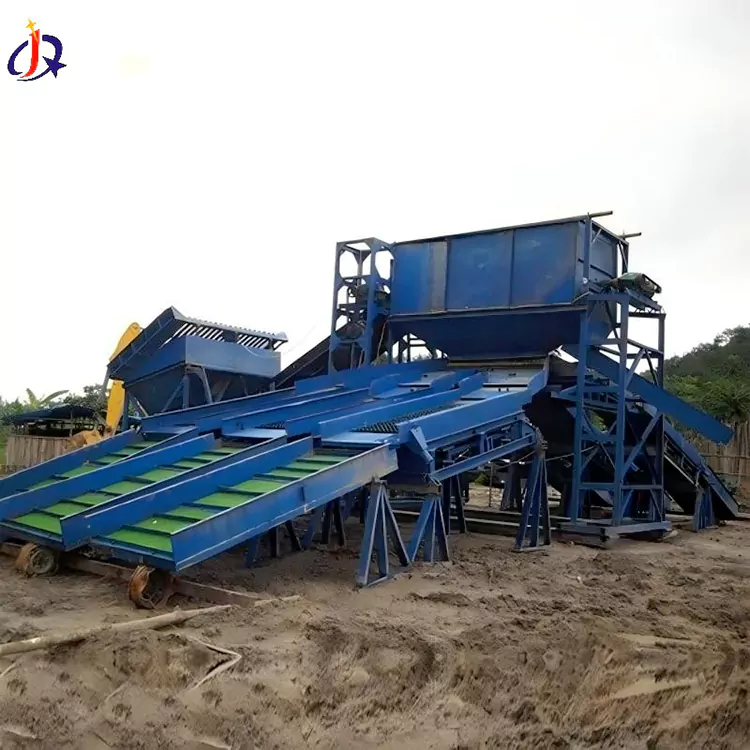

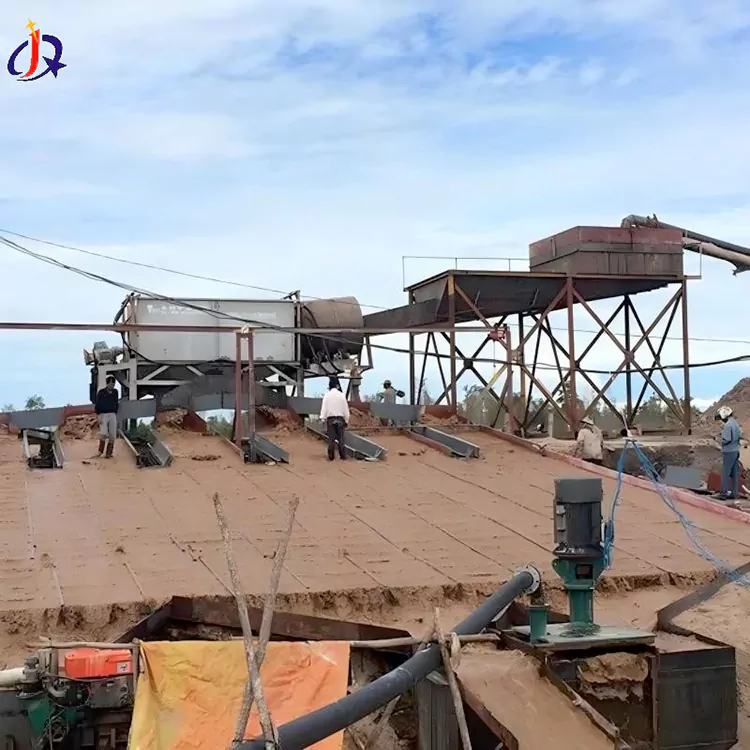

Clay Alluvial Gold Washing Plants

Clay alluvial gold washing plants are a complete set of ore processing equipment designed for gold mines with high clay content. By combining mechanical scrubbing with hydraulic flushing, these plants achieve clay stripping and ore-slime separation, thereby enabling the enrichment and recovery of gold particles. The core challenge they address is the dissociation of gold particles wrapped in clay, followed by gold recovery through gravity separation and other processes.

If you are interested in this product, Qingzhou Jinqi Mining Machinery Co., Ltd. can provide you with comprehensive services and competitive prices.

Core Equipment Types

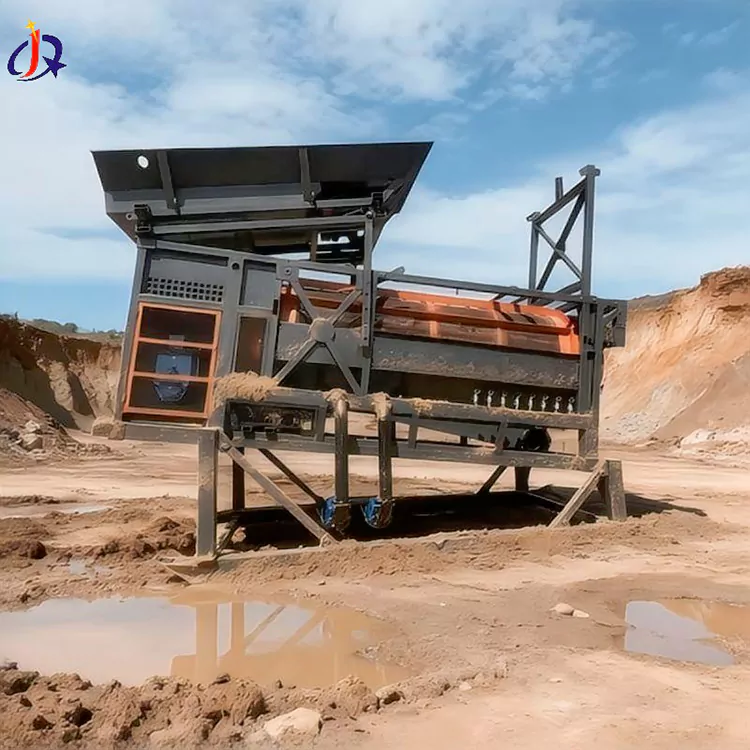

1. Rotary Drum Scrubber

Function: Serving as a pre-processing unit, it strips clay from the ore surface and fully disperses the ore through the combination of a rotating drum and high-pressure water flow.

Features: The drum is equipped with scrapers or pebbles to enhance friction and break up clay lumps; its fully enclosed structure prevents dust pollution.

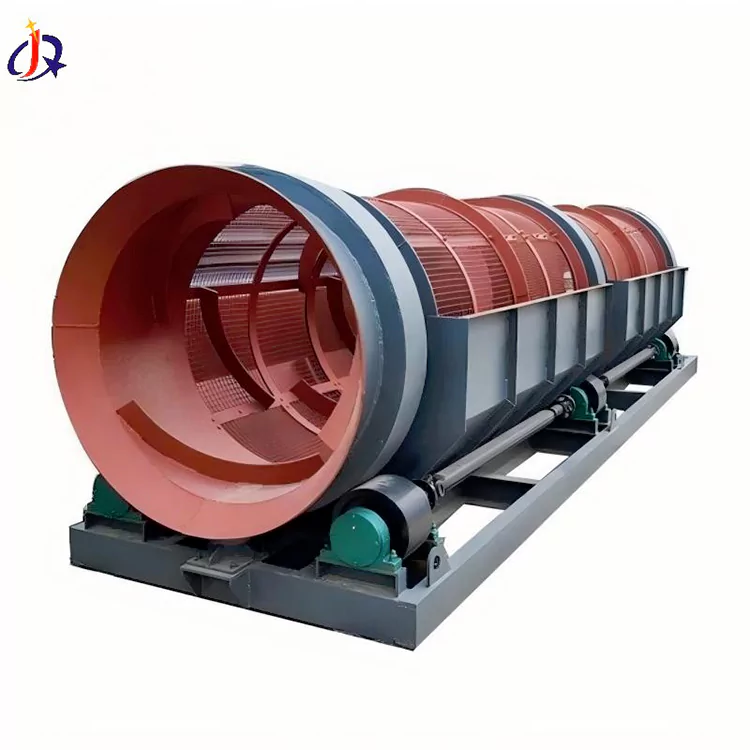

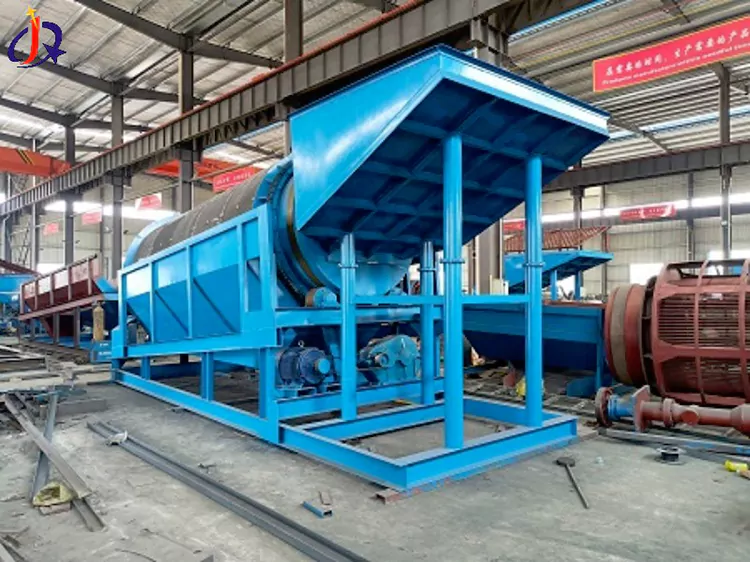

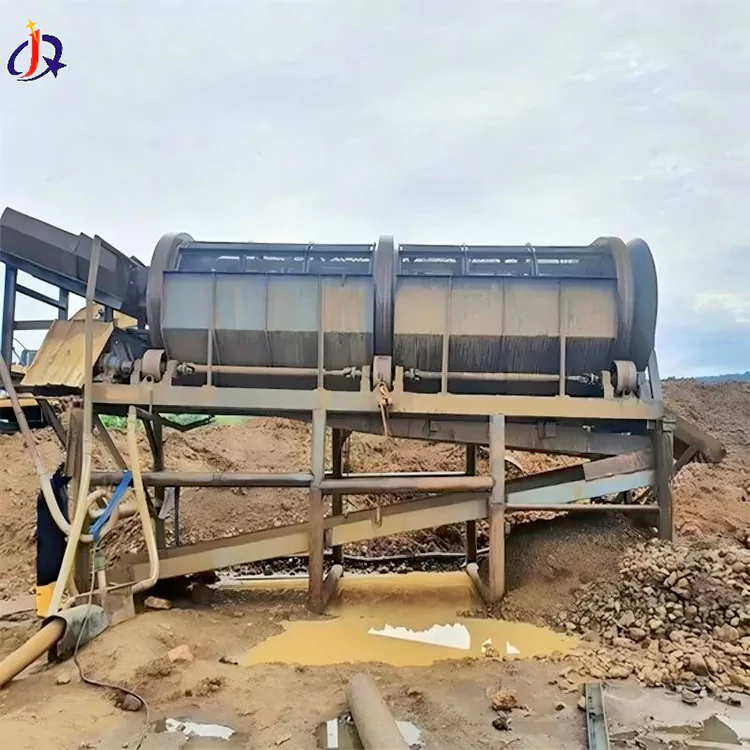

2. Rotary Drum Screen

Function: It screens out large-sized waste rocks while decomposing clay through high-pressure water flushing.

Features: The drum is motor-driven to rotate, preventing screen clogging; the screen mesh size can be customized to accommodate varying clay contents in different mining areas.

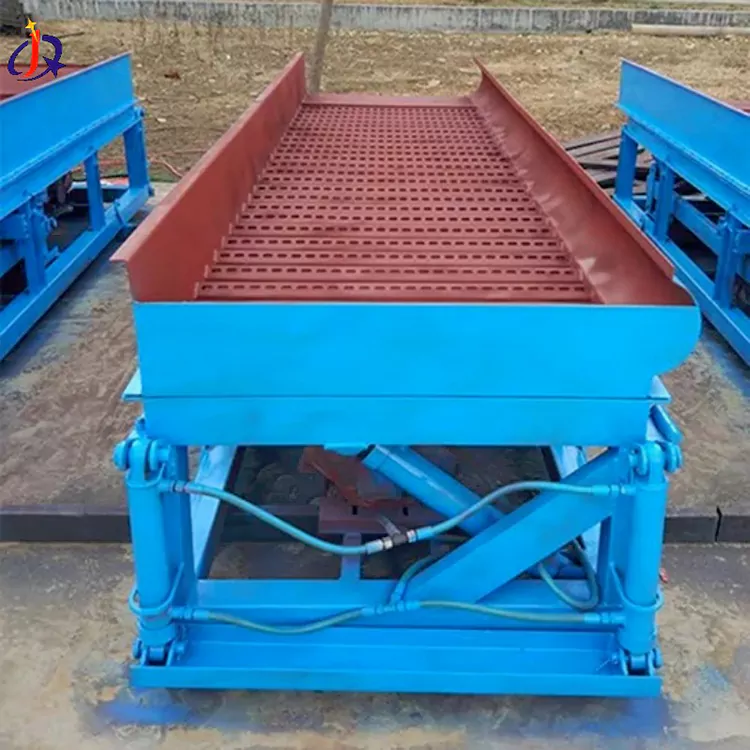

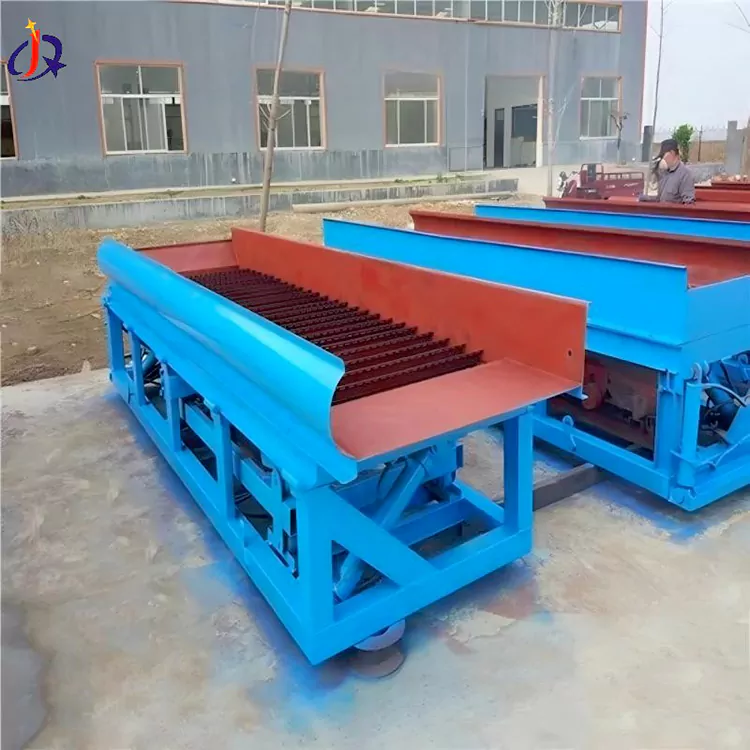

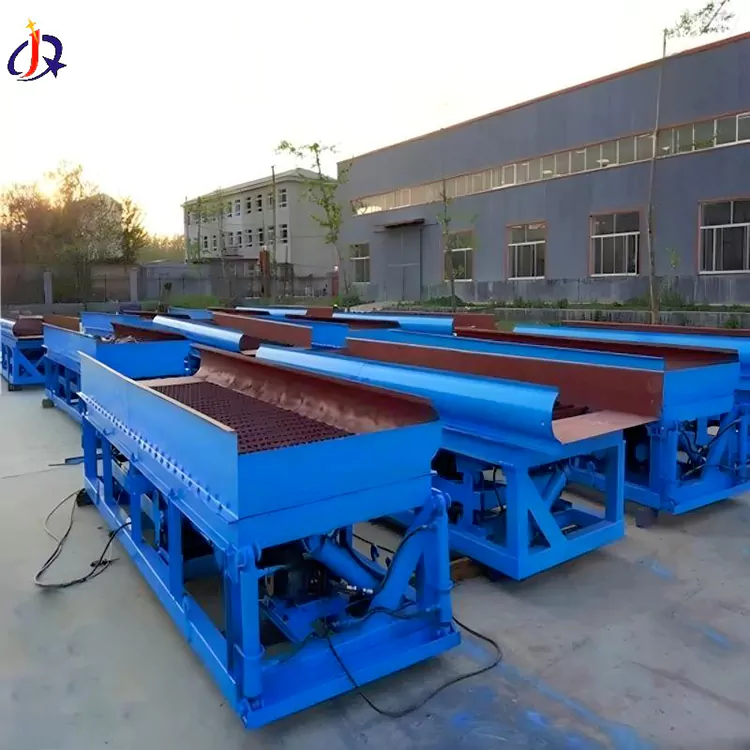

3. Vibrating Sluice Box

Function: It utilizes mechanical vibration to induce water flow undulations, enabling the dissociation and settling of fine gold particles trapped in clay.

Features: An improved version of conventional sluice boxes, it is suitable for processing fine gold particles, significantly enhancing recovery rates.

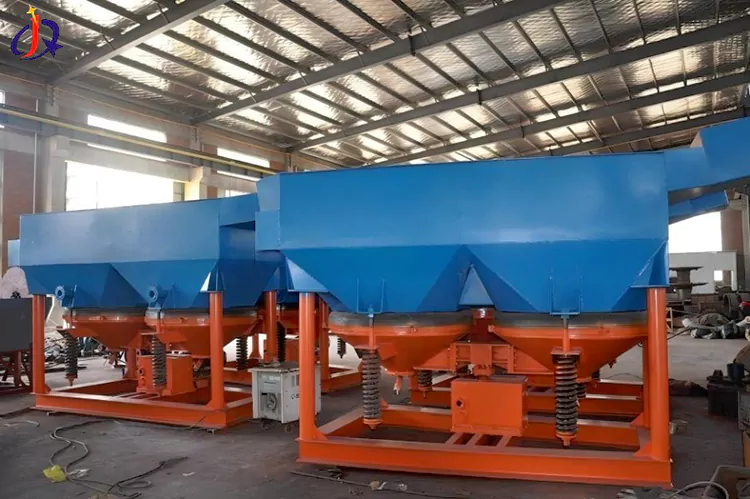

4. Jig Concentrator

Function: It exposes and settles gold particles using pulsating water flow, with a clog-resistant screen design to prevent clay compaction.

Features: It boasts high processing capacity, enabling continuous and stable operation while minimizing downtime for maintenance.

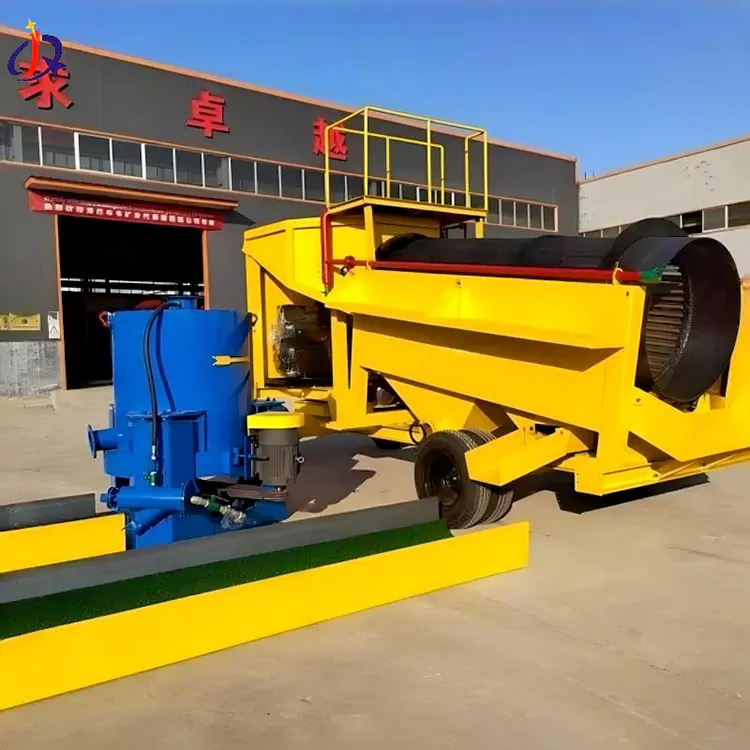

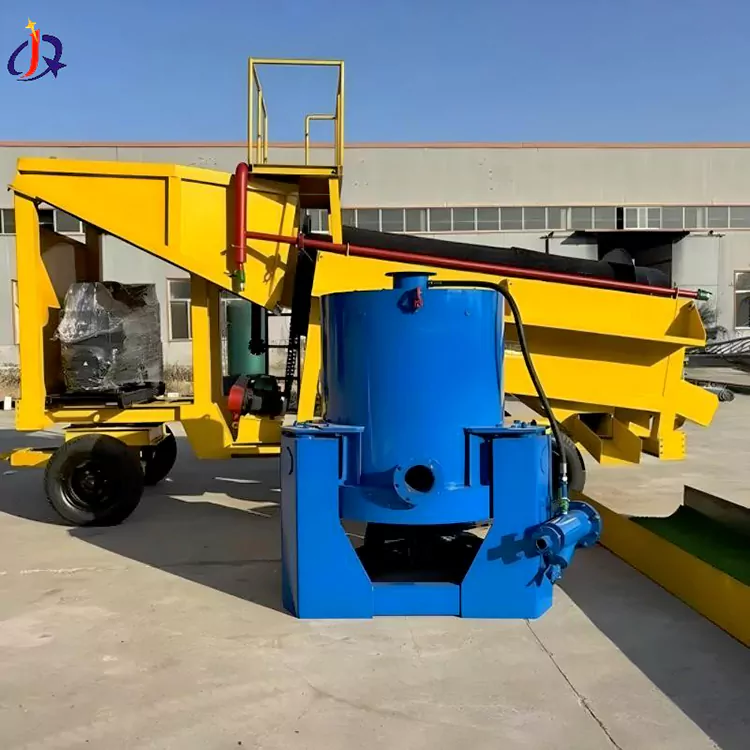

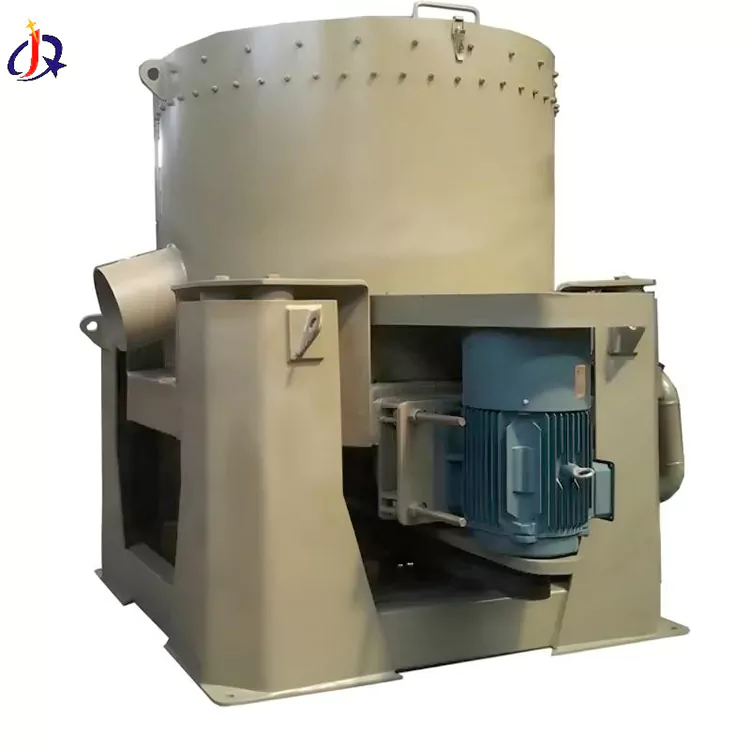

5. Centrifugal Concentrator

Function: It recovers fine gold particles from the tailings of jig concentrators and sluice boxes by combining centrifugal force with a backflush water system.

Features: It offers a high concentration ratio, making it ideal for low-grade ore deposits and reducing gold losses.

Technical Parameters

Qingzhou Jinqi can produce customized clay alluvial gold washing plants according to the actual needs of customers.

Advantages

1. Efficient Dissociation

By thoroughly removing clay interference through ore washing pre-treatment, it creates ideal conditions for subsequent separation processes.

2. Precise Recovery

Combining gravity separation techniques, it employs the optimal recovery methods for gold particles of varying sizes, achieving a recovery rate of over 90%.

3. Environmentally Friendly and Energy-Efficient

Equipped with a wastewater recycling system, it enables circular utilization and near-zero discharge, significantly reducing water consumption.

4. Intelligent Control

Integrated with sensors and computer technology, it monitors equipment operation status in real-time and automatically adjusts parameters to optimize separation performance.

5. Strong Adaptability

It can process various complex ore materials, including clay, volcanic ash deposits, permafrost layers, and more, adapting to different mining environments.

Choose Us

Leveraging its highly adaptable technology, flexible customization capabilities, and a well-established service system, Qingzhou Jinqi Mining Machinery Co., Ltd. has successfully served over 1,000 clients, achieving a customer repurchase rate of 35%.

Its equipment can meet daily processing demands ranging from 50 to 1,000 tons, with delivery lead times for standard models ≤15 days. The company provides efficient, eco-friendly, and cost-effective one-stop solutions for global clay alluvial gold mining operations. If you are interested in clay alluvial gold washing plants, please contact us.
