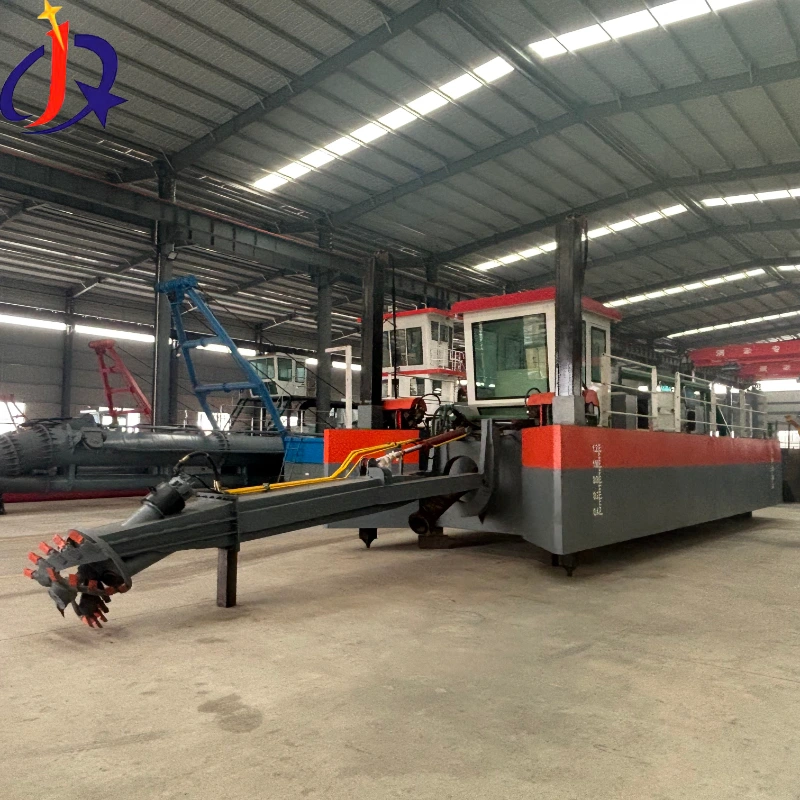

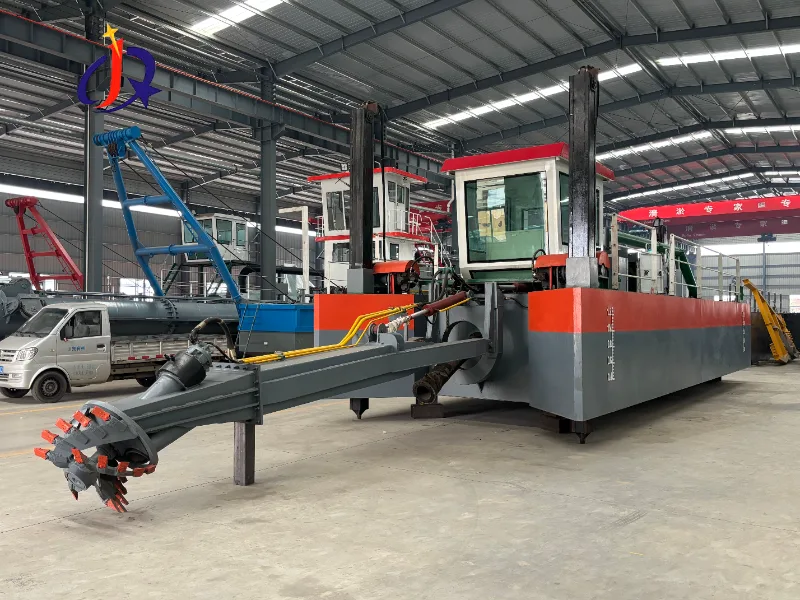

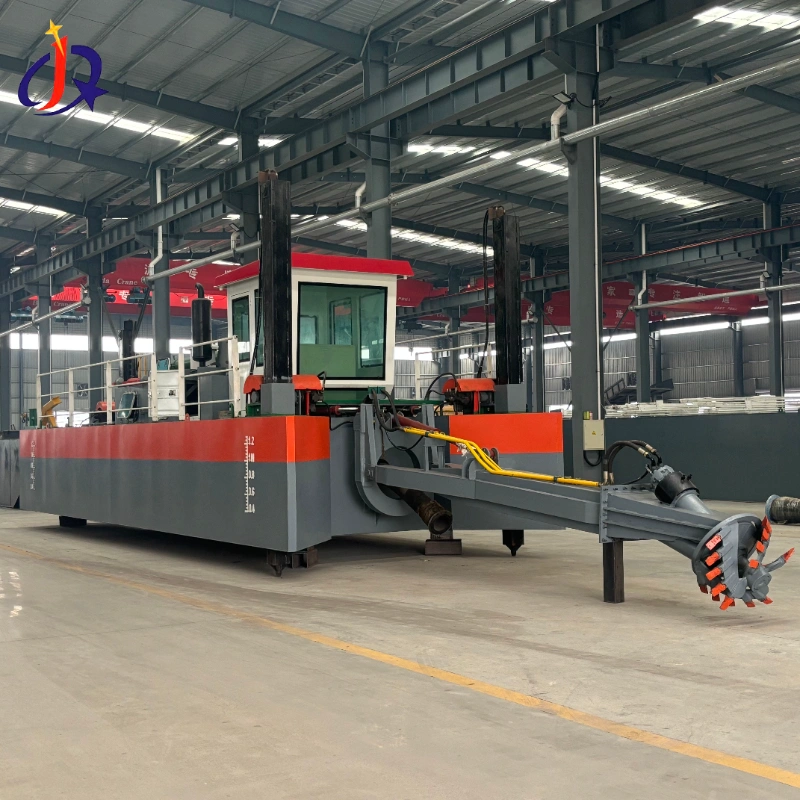

Small Shallow-Water Cutter Suction Dredger

Manufactured by Qingzhou Jinqi Mining Machinery Co., Ltd., the small shallow-water cutter suction dredger is a lightweight hydraulic dredging unit tailor-made for shallow waters, shoals and narrow water areas. It features shallow draft, compact structure, high flexibility and continuous operation. As our flagship selling model, it enjoys great popularity. Please contact us if you want  purchasing small shallow-water cutter suction dredger .

MAIN TECHNICAL PARAMETERS

SMALL SHALLOW-WATER CUTTER SUCTION DREDGER STANDARD CONFIGURATION

Hull Main Body

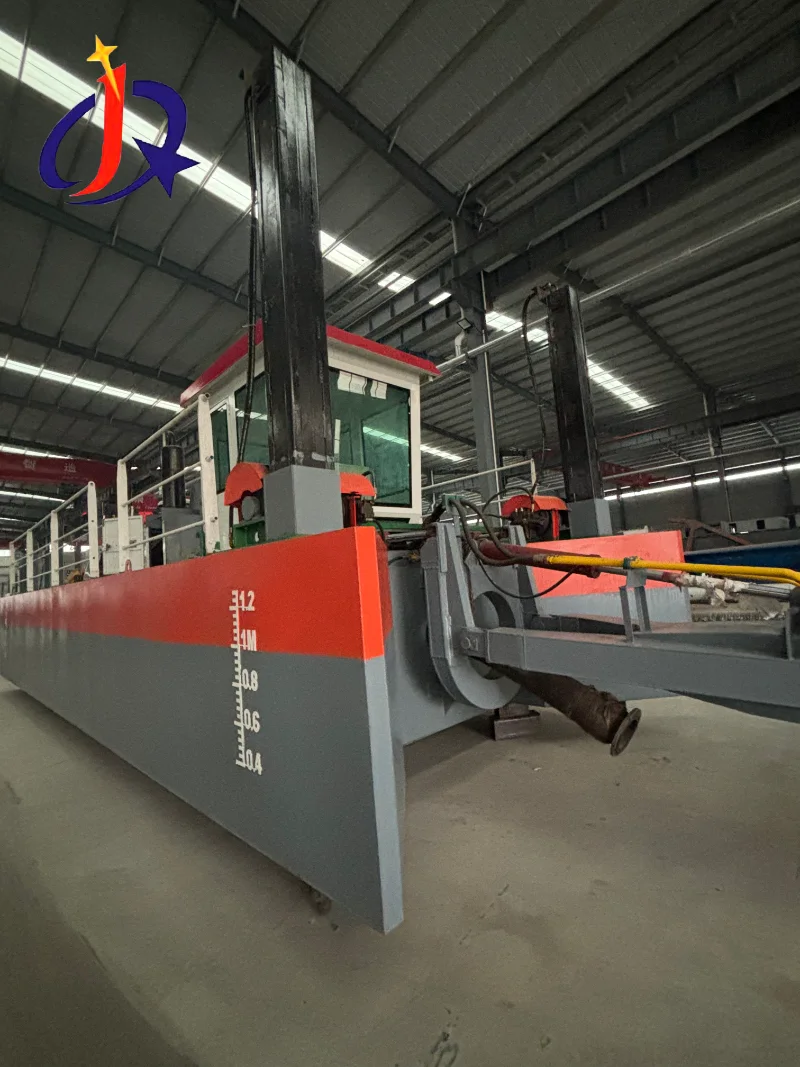

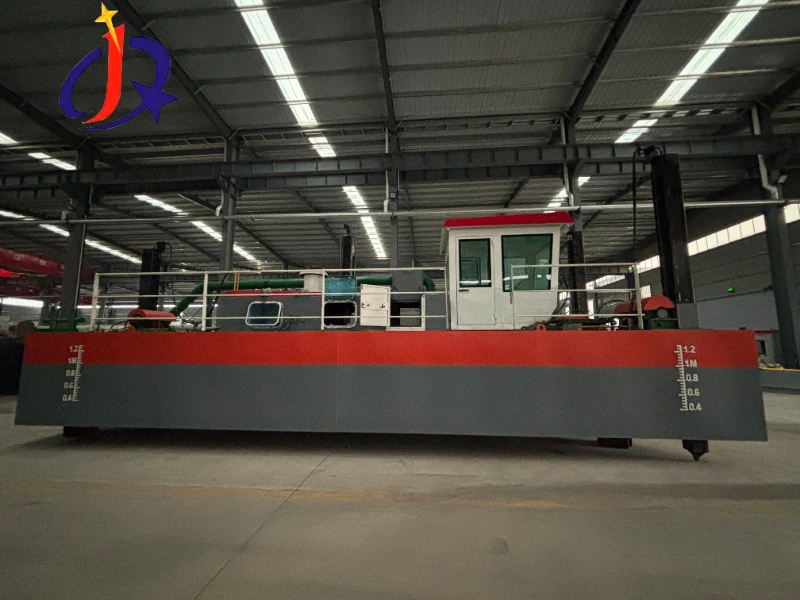

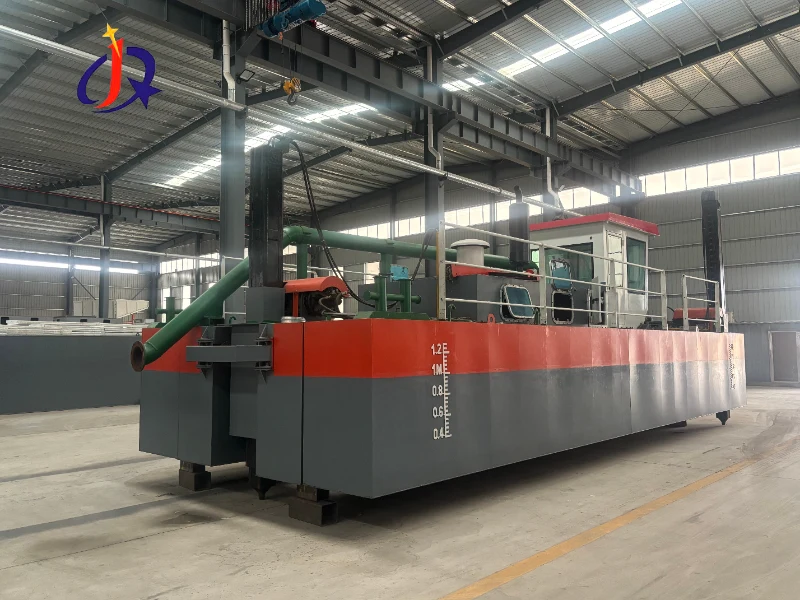

1.Integrally assembled steel hull with shallow draft and low grounding risk.
2.Anti-slip working platform and safety guardrails.
3.Enclosed equipment cabin, waterproof, rust-proof and durable.

Power System

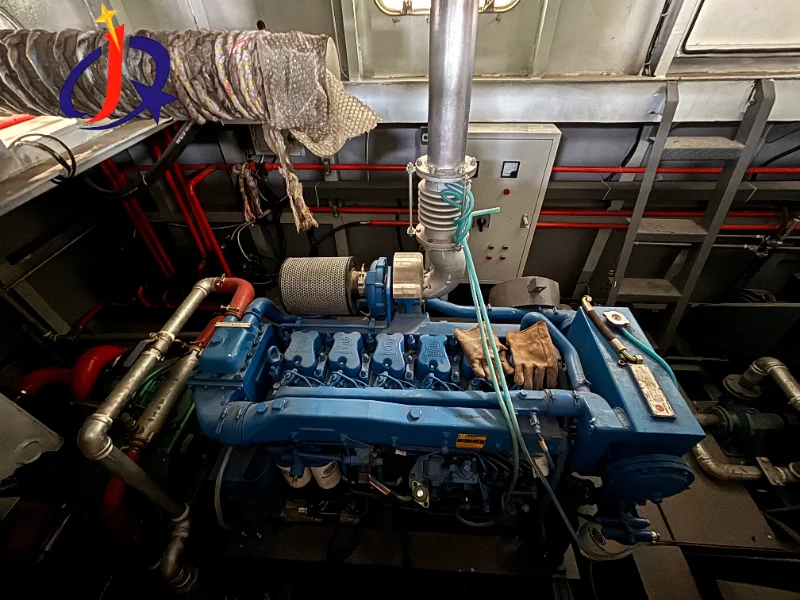

1. Marine diesel main engine with stable power output and fuel efficiency.

2. Complete hydraulic power assembly that drives all operations of the whole machine.

3. Full set of auxiliary components including cooling, fuel supply and exhaust systems.

Dredging Operation Assembly

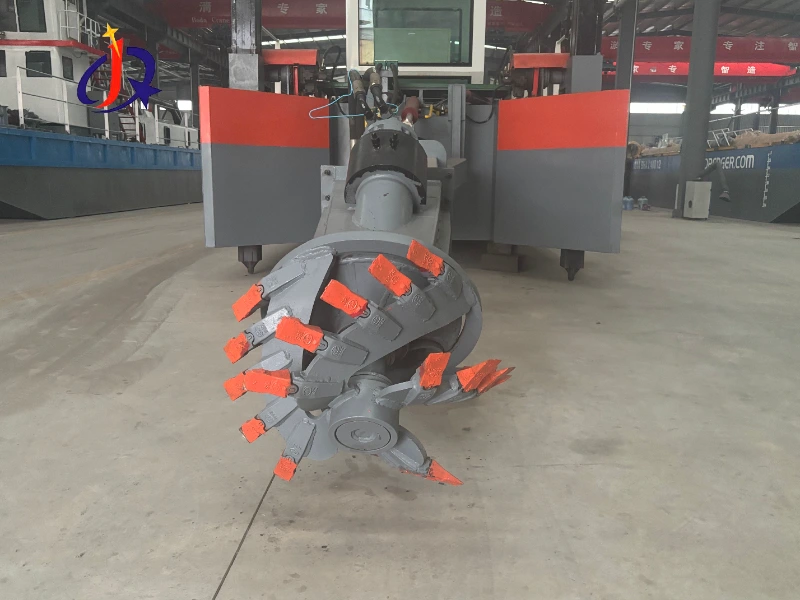

1. Hydraulically driven cutter head with wear-resistant alloy cutter teeth for cutting silt, mud and sand.

2. Hydraulically lifting articulated arm with adjustable dredging depth.

3. Highly wear-resistant dredge pump for sucking and conveying slurry

Positioning & Travel Mechanism

1.Three hydraulic spuds for stable mooring during operation.

2. Hydraulic stepping shifting system to flexibly adjust working positions.

Control & Hydraulic System

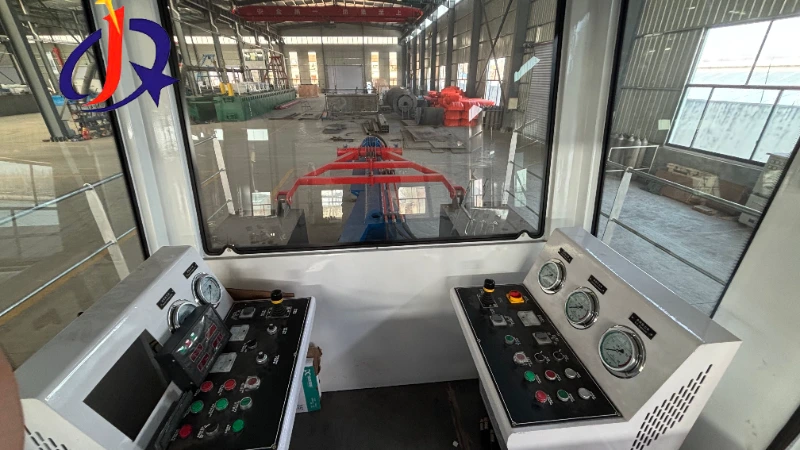

1. Integrated cabin with simple operation console.

2. Multi-way hydraulic valve group for flexible and precise control.

3. Complete accessories including hydraulic hoses, seals and pressure gauges.

Conveying Accessories

1. Wear-resistant mud conveying pipes and quick couplings.

2. Floating pipes and shore pipes suitable for long and short-distance slurry transportation.

ALL TYPES OF CUTTER SUCTION DREDGERS MANUFACTURED BY JINQI MINING MACHINERY CAN BE LINKED WITH LAND-BASED GOLD MINING EQUIPMENT UNITS TO FORM AN INTEGRATED SYSTEM FOR UNDERWATER DREDGING AND ON-SHORE GOLD EXTRACTION.

The small shallow-water cutter suction dredger manufactured by Qingzhou Jinqi Mining Machinery Co., Ltd. is custom-built for shallow waters, small-scale operations and precision dredging scenarios. It makes up for the limitations of large dredging equipment, featuring great flexibility, high efficiency, cost-effectiveness and environmental friendliness.

It performs reliably in routine water maintenance, emergency dredging, ecological remediation and reclamation for small infrastructure projects. As one of the most practical and widely used core units for shallow water dredging, it delivers efficient and cost-effective solutions for various small and medium-sized water conservancy and environmental projects.
