Cutter Suction Dredger with Gold Washing Plant

Cutter Suction Dredger with Gold Washing Plant is an integrated solution tailor-made by Qingzhou Jinqi Mining Machinery Co., Ltd. for customers engaged in placer gold mining at dredging sites.Consisting of a cutter suction dredger and an onshore gold washing and beneficiation plant, it realizes fully automatic operation covering underwater sand extraction and dredging, pipeline transportation, and onshore gold separation.It efficiently separates placer gold from impurities, greatly improves the gold recovery rate, and achieves the purpose of sand dredging simultaneously.

Core Equipment Components

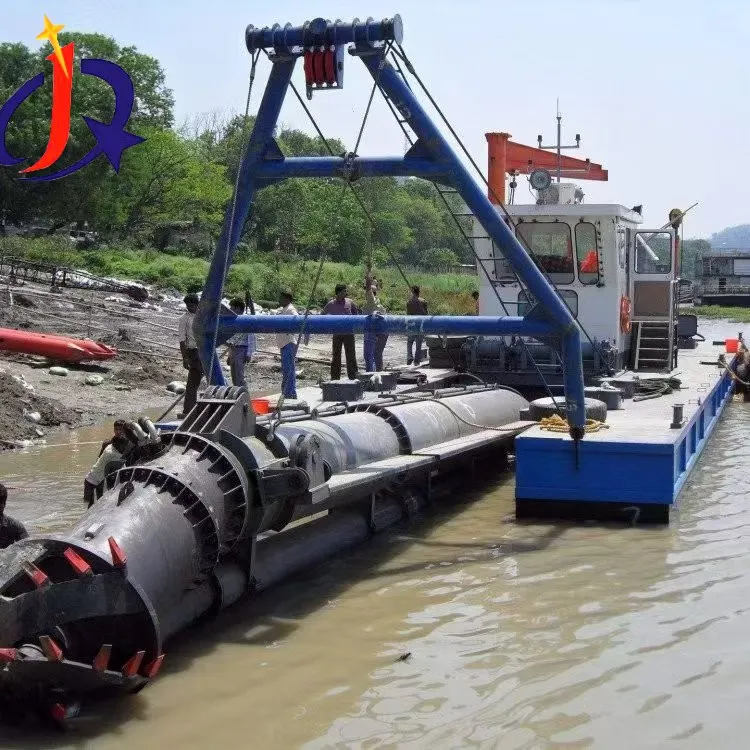

Cutter Suction Dredger

Its core components include a cutter head, sand pump, delivery pipeline, hull and power system. It is designed to loosen and agitate underwater ore sand and silt, and then deliver the slurry (placer gold + impurities + water + silt) to the shore under high pressure through pipelines.Pipe diameters from 6 to 20 inches can be customized according to requirements, with an hourly processing capacity of 64 to 960 tons.

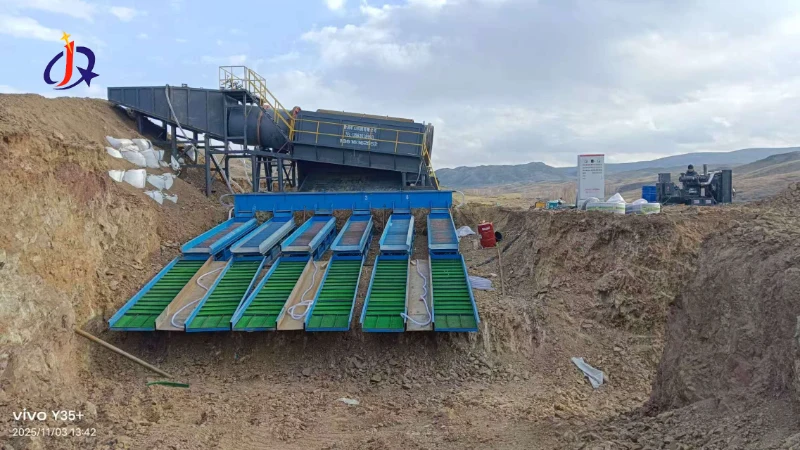

Onshore Gold Washing Plant

It consists of a rotary scrubber, vibrating screen, pulsating sluice box, centrifugal concentrator, automatic gold recovery machine, heavy mineral concentrate unit, and tailings disposal system.The above equipment is configured according to the actual needs of the project.

Note: A rotary scrubber or vibrating screen, pulsating sluice box, and automatic gold recovery machine form the standard configuration.

Auxiliary systems

include high-pressure water supply system, electric control system and power generation system, which ensure the coordinated operation of equipment. The conveying pipelines can be extended according to the working distance.

Operation Process

Sand Dredging Stage:

 The cutter suction dredger navigates to the working water area. The rotating cutter head loosens the underwater placer gold deposit. At the same time, the sludge pump operates to draw the mixed slurry (placer gold, soil, gravel and water) into the pipeline.

Conveying Stage:

The slurry is directly delivered to the onshore gold washing plant via high-pressure pipelines, with zero leakage and no intermediate transportation.

Gold Processing Stage:

The onshore unit firstly scrubs raw sand through the rotary ore washer to remove clay coatings. Afterwards, gravity separation equipment including pulsating sluice boxes precisely recovers gold particles.

Tailings Treatment Stage:

The waste materials after gold separation are settled by thickeners. Clean water is recycled, and residual tailings can be used for land backfilling or other applications, achieving eco-friendly operation.

Applicable Scenarios and Core Parameters

1. Alluvial gold mining in rivers, ponds, lakes, reservoirs and other water areas

2. Placer gold recovery from dredging projects

3. Small and medium-sized gold mining areas

4. Treatment of high-clay alluvial gold ore.

Product Parameters (Customizable)

Advantages

Lower Investment:

The integrated design eliminates the need for transfer equipment and reduces labor costs, featuring a short payback period.

Higher Profit

High recovery rate minimizes gold loss. Continuous operation boosts output and maximizes customer benefits.

Easy Operation & Maintenance

Simple to operate and convenient to maintain. No professional technical team required, ideal for deployment in overseas mining areas.

Eco-friendly & Compliant

Complies with mining environmental standards in most countries. It can smoothly pass local environmental inspections and ensure long-term stable project operation.

As a professional manufacturer of placer gold processing and washing equipment, Qingzhou Jinqi Mining Machinery Co., Ltd. can customize exclusive equipment solutions according to your specific mining conditions, including daily processing capacity, operating water area, ore sand characteristics and other requirements. We provide full-process technical guidance, installation and commissioning, as well as comprehensive after-sales support, helping you carry out placer gold mining projects efficiently and cost-effectively.
