Gold Trommel Scrubber

Qingzhou Jinqi Mining Machinery Co., Ltd. is a Gold Trommel Scrubber manufacturer and supplier from China. Our equipment is highly adaptable, stable, energy-efficient, and is the preferred choice for numerous gold mining companies worldwide. Contact us for customized factory-direct solutions.

Send Inquiry

Product Description

The gold trommel scrubber produced by Qingzhou Jinqi Mining Machinery Co., Ltd. serve as the core screening and cleaning equipment in the river placer gold mining and washing process. Specifically designed to remove impurities such as clay, mud, wood chips, and stones from gold-bearing sand ores, these machines also break down mud clumps that encapsulate gold particles, providing clean and loose ore materials for subsequent gravity separation processes (using jigs or centrifuges). Currently, our gold trommel scrubbers are available for direct factory sales!

Product Composition

The gold trommel scrubber of Jinqi adopts a modular integrated design, which balances stability, ease of maintenance, and multi-scenario adaptability. It is composed of six core modules, with all components working together to ensure efficient screening and cleaning, as detailed below.

Item	Introduction

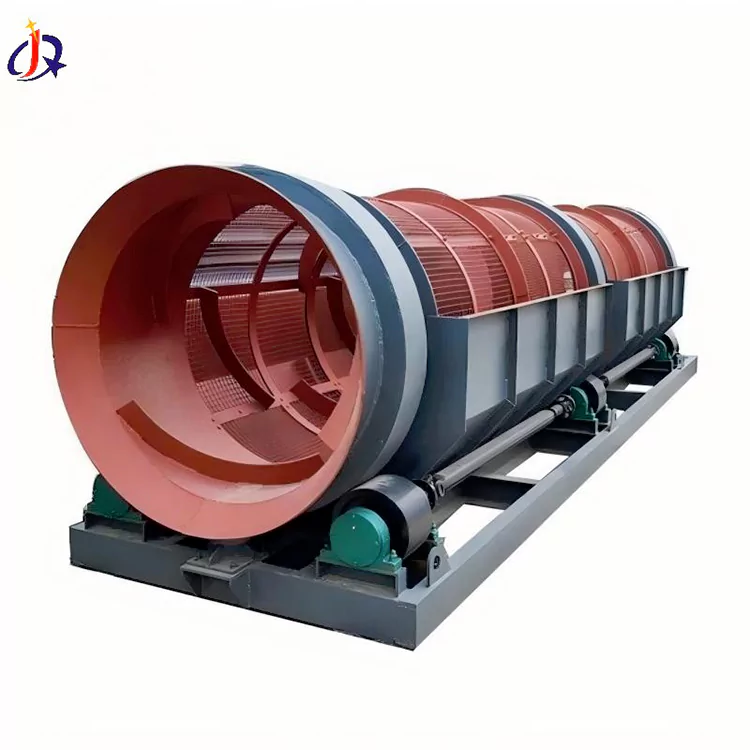

Drum body module.	Made of HRC60+ wear-resistant alloy material, it features customizable quick-release screen meshes, anti-clogging design, adjustable inclination angles, and is easy to clean and maintain.
Drive Transmission Module	Energy-saving power unit with over 95% transmission efficiency, enabling precise speed control, featuring sealed protection, reducing energy consumption by 15%, and suitable for complex working conditions.
Washing spray module.	High-pressure adjustable spraying combined with a filtration unit enables efficient mucilage removal, supports water-saving mode, and is suitable for arid environments.
Frame and chassis module.	Corrosion-resistant steel frame with optional mobile/fixed chassis, enabling rapid assembly by 3 people in 4 hours and facilitating transportation to remote areas.
Heating and protection module.	Extreme cold heating + insulation system, operable at -30℃, featuring dustproof and waterproof sealing for high durability.
Control system module.	Optional PLC intelligent control supports remote diagnostics, offering easy operation and upgradeable maintenance functions.

Technical Parameters

The gold trommel screen from Qingzhou Jinqi has become an indispensable efficient, environmentally friendly, and intelligent screening equipment in the mining of alluvial gold deposits and lode gold deposits. It significantly enhances the overall efficiency and sustainability of gold mining operations. Moreover, Qingzhou Jinqi can produce customized gold trommel screens according to the actual needs of customers.

MODEL	CAPACITY	POWER	REDUCTION	EXTERNAL DIMENSIONS	ORE SIZE
JQ-30	20-30 T/h	3 KW	250 Type	4.21.10.85m	≤10mm
JQ-40	40-50 T/h	4 KW	250 Type	51.10.85m	≤10mm
Custom-made	Design and manufacture according to customers' actual needs.

Gold Trommel Scrubber

Product Advantages

Efficient Screening

Screening efficiency ≥ 95%, with gold recovery rates increased to 80%-97%.

Environmentally Friendly and Energy-Saving

Energy consumption is only 50% of that of traditional screening equipment, reducing customers' gold mining costs.

Strong Adaptability

The screening drum features adjustable aperture sizes, making it suitable for mining areas with high clay content and fine particles (e.g., clayey ore deposits in Ghana and the Democratic Republic of the Congo in Africa). The classification effect can be optimized by adjusting rotational speed and screen aperture dimensions.

Intelligent Control

Real-time optimization of screening parameters, equipped with safety devices such as overload protection and emergency shutdown.

Easy Maintenance

Modular quick-release design allows for screen drum replacement in just 30 minutes. Supporting roller bearings require no replacement for 3 years, while the gear reducer requires oil changes only every six months, resulting in low annual operating costs.

Gold Trommel Scrubber

Qingzhou Jinqi Mining Machinery Co., Ltd., leveraging its professional R&D and production systems, provides efficient, environmentally friendly, and intelligent screening solutions for gold mining enterprises worldwide, helping mining clients achieve a win-win scenario of green production and economic benefits. If you have procurement needs for gold trommel scrubbers, please contact us!
