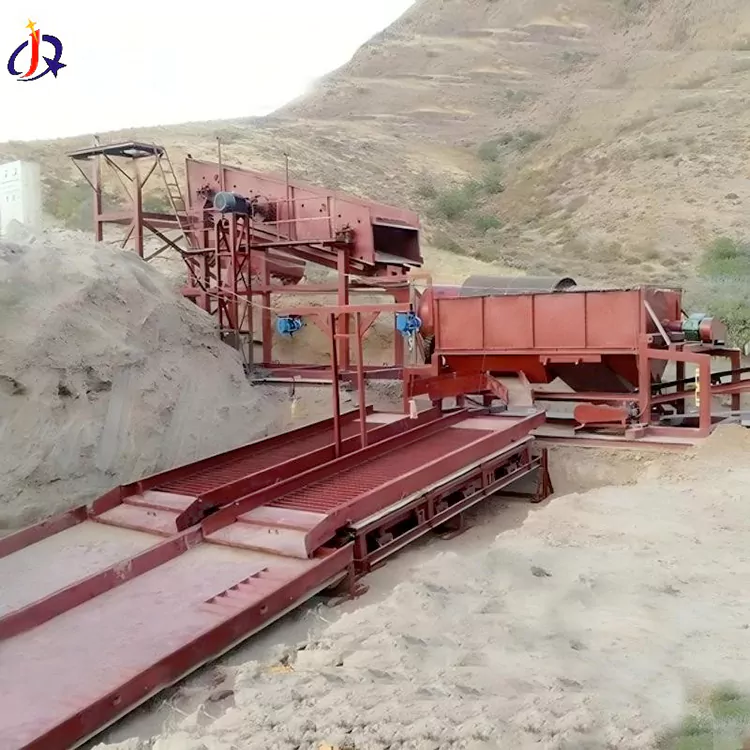

Sand Gold Vibrating Screen

As a sand gold vibrating screen manufacturer from China, Qingzhou Jinqi Mining Machinery Co., Ltd. offers customized services. Our equipment is available in various capacities, features high efficiency, is easy to maintain, and is designed for continuous operation. We provide factory-direct pricing and technical support.

Send Inquiry

Product Description

Jinqi is a professional manufacturer of customized Sand Gold Vibrating Screens, offering direct sales from the factory.

This equipment is a specialized classification and screening equipment designed specifically for the beneficiation process of sand gold ore. Its core function is to utilize a vibration motor to drive the high-frequency vibration of the screen surface, achieving particle size classification, desliming, and dewatering of sand gold ore materials. Simultaneously, it separates gravel and impurities from the ore, providing qualified materials for subsequent sand gold concentration and recovery processes. Qingzhou Jinqi Mining Machinery Co., Ltd. looks forward to cooperating with you!

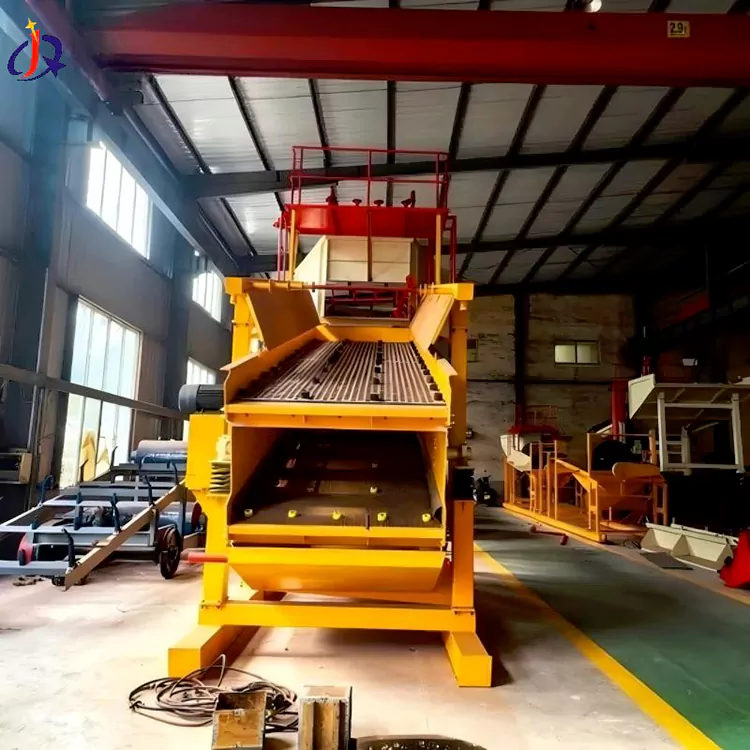

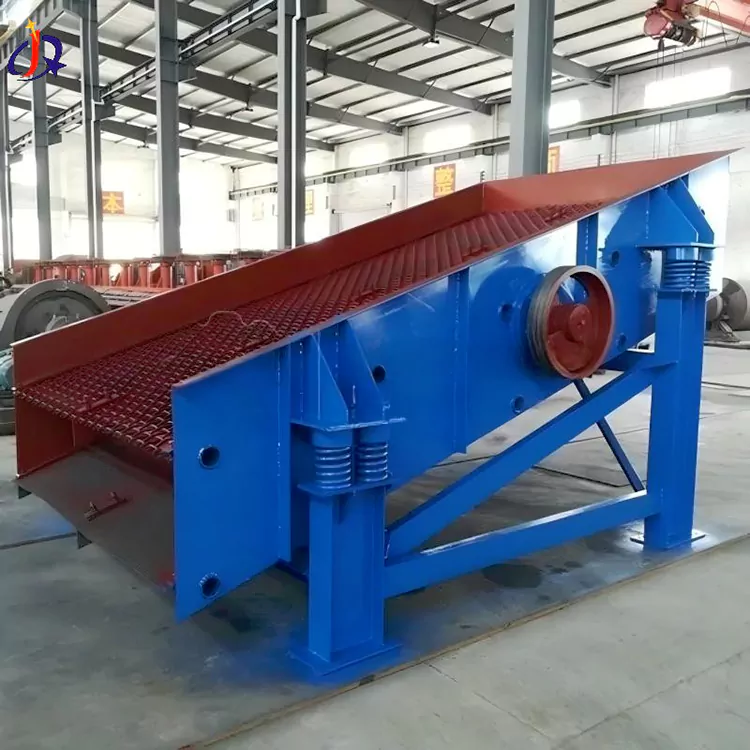

Sand Gold Vibrating Screen

Technical Specifications

MODEL	CAPACITY	POWER	WATER	ORE SIZE	RECOVERY
JQ-80	60-80 T/H	50KW	120 m³/h	≤10 mm	90-95%
JQ-100	80-100 T/H	68KW	180 m³/h	≤10 mm	90-95%
JQ-150	100-150 T/H	95KW	240 m³/h	≤10 mm	90-95%
JQ-200	150-200 T/H	120KW	300 m³/h	≤10 mm	90-95%
Custom-made	Design and manufacture according to customers' actual needs.

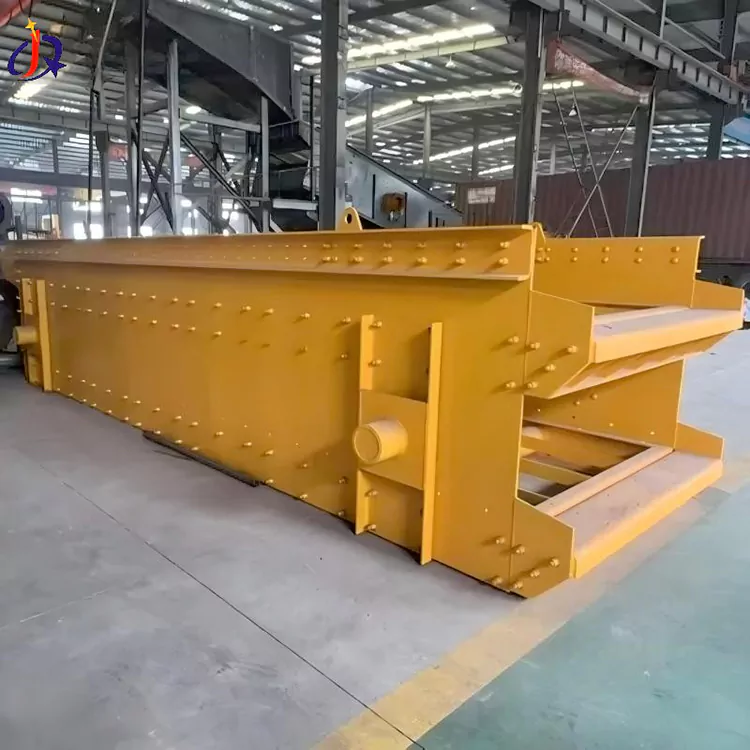

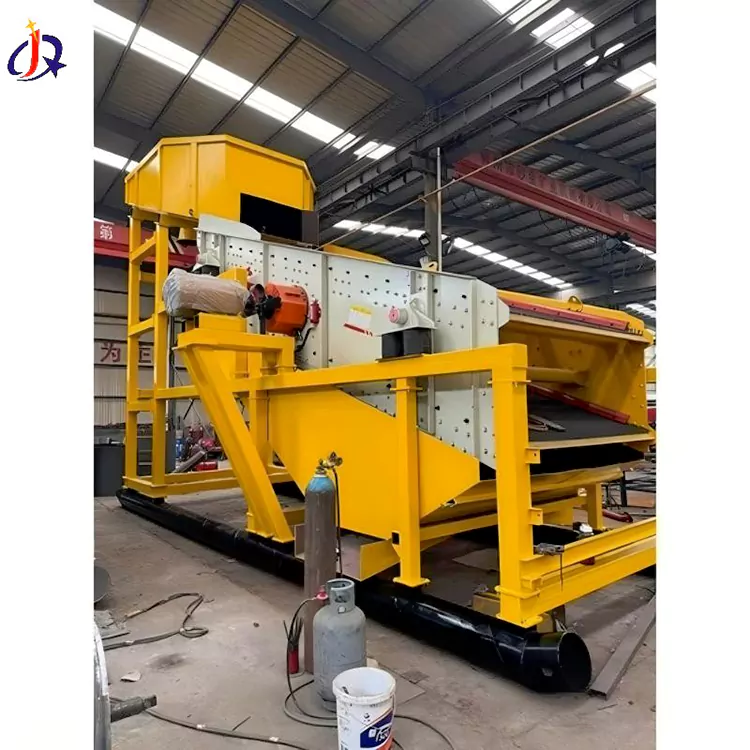

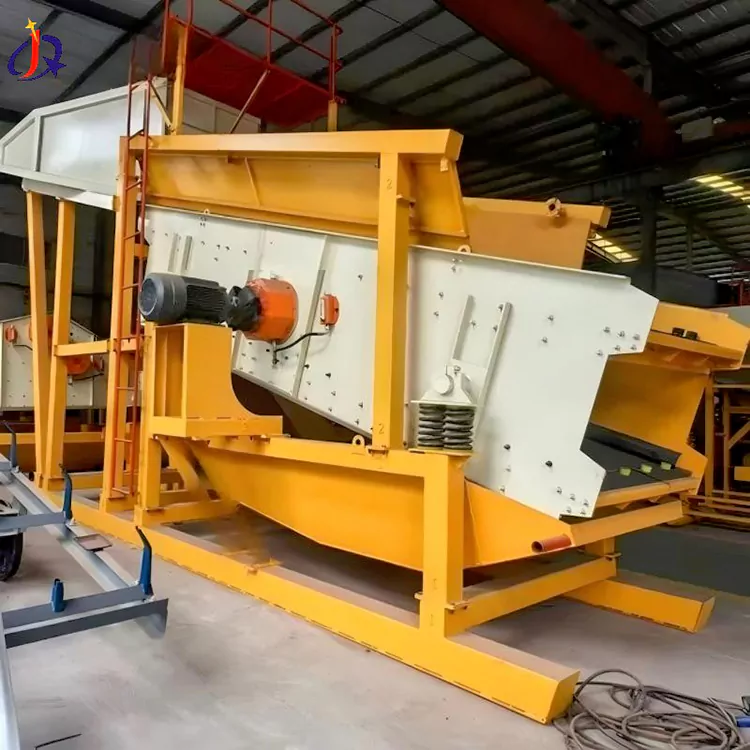

Sand Gold Vibrating Screen

Advantages and Characteristics

1. Efficient Screening

The high-frequency vibration motor drives the screen mesh of the Sand Gold Vibrating Screen, enabling rapid separation of sand gold from impurities such as silt and stones.

The adjustable screen angle optimizes the material flow path, reduces the risk of screen clogging, and enhances processing efficiency.

2. Anti-clogging Design

Given the clay-rich nature of sand gold ore, the vibrating screen employs perforated steel plates or polyurethane screen meshes with smooth, wear-resistant surfaces. When paired with an optional high-pressure water spray system, it effectively prevents clay adhesion, ensuring uninterrupted operation.

3. Integrated Ore Washing

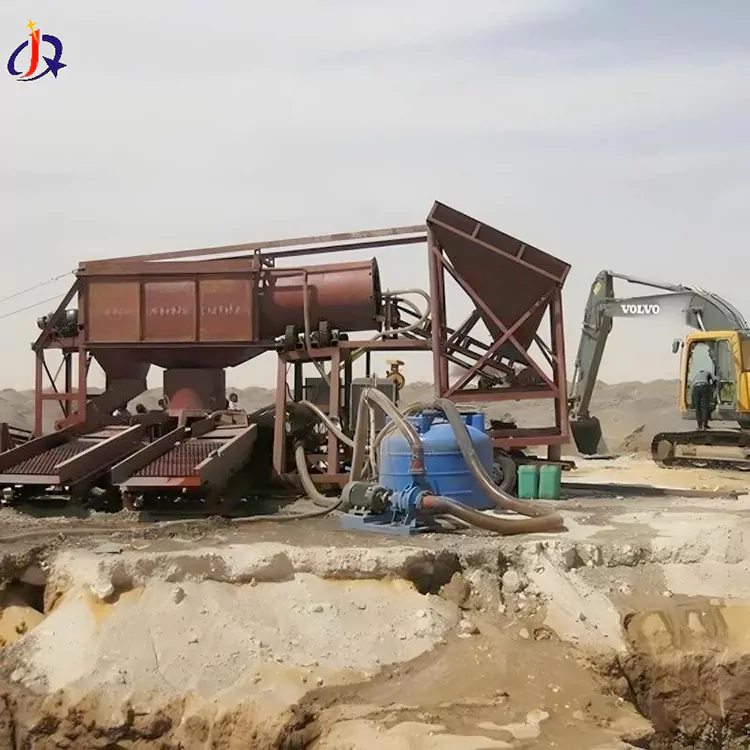

Certain models of the Sand Gold Vibrating Screen incorporate a high-pressure ore washing system, which simultaneously rinses materials during screening to strip away mud adhering to stones, thereby enhancing gold recovery rates.

4. Modular Customization

The mesh size is adjustable to meet varying particle size separation requirements for sand gold.

It offers multiple material options, including carbon steel, stainless steel, and manganese steel, and supports both electric and diesel generator-powered operation, making it suitable for areas without access to the power grid.

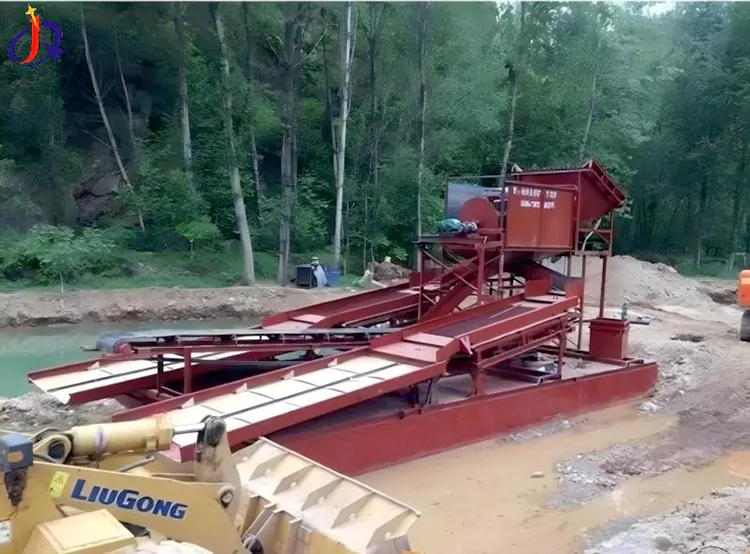

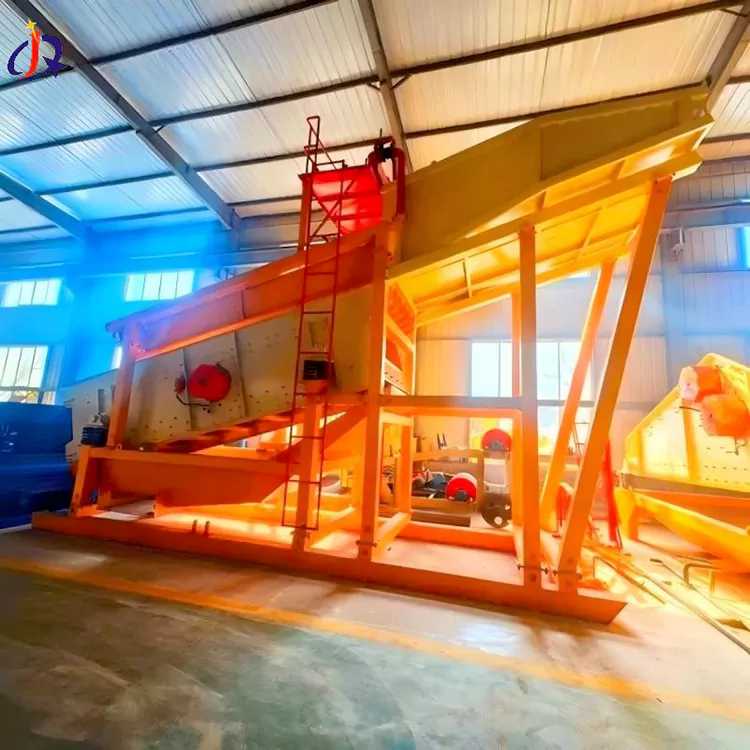

Sand Gold Vibrating Screen
