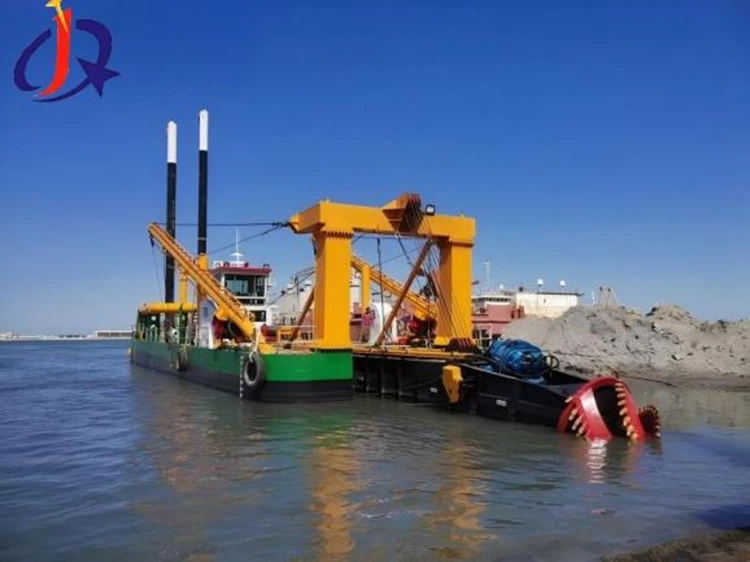

Cutter Suction Dredger for Port Dredging

The Cutter Suction Dredger for Port Dredging is one of the high-performance products of Qingzhou Jinqi Mining Machinery Co., Ltd. As a professional manufacturer, we can provide customized designs with high adaptability to different working conditions. If you would like to obtain factory direct prices and technical services, please contact us.

Send Inquiry

Product Description

The Cutter Suction Dredger for Port Dredging manufactured by Qingzhou Jinqi Mining Machinery Co., Ltd. is a large-scale engineering vessel that integrates excavation, suction, and transportation functions. By utilizing a rotating cutter head to cut underwater sediments and coordinating with mud pumps to suction and transport the mud, it achieves dredging, widening, and deepening of port channels, serving as a core piece of equipment for modern port maintenance and dredging. If you are in need of purchasing this product, please contact Jinqi. We are currently offering direct factory sales of cutter suction dredgers.

Technical Characteristics and Advantages

Efficient and Continuous Operation:

Integration of excavation, transportation, and mud discharge is achieved in one continuous process, eliminating the need for frequent equipment shutdowns and replacements, resulting in high production efficiency.

Suitable for large-scale, long-duration dredging projects, such as port channel maintenance and coastal reclamation.

Strong Adaptability:

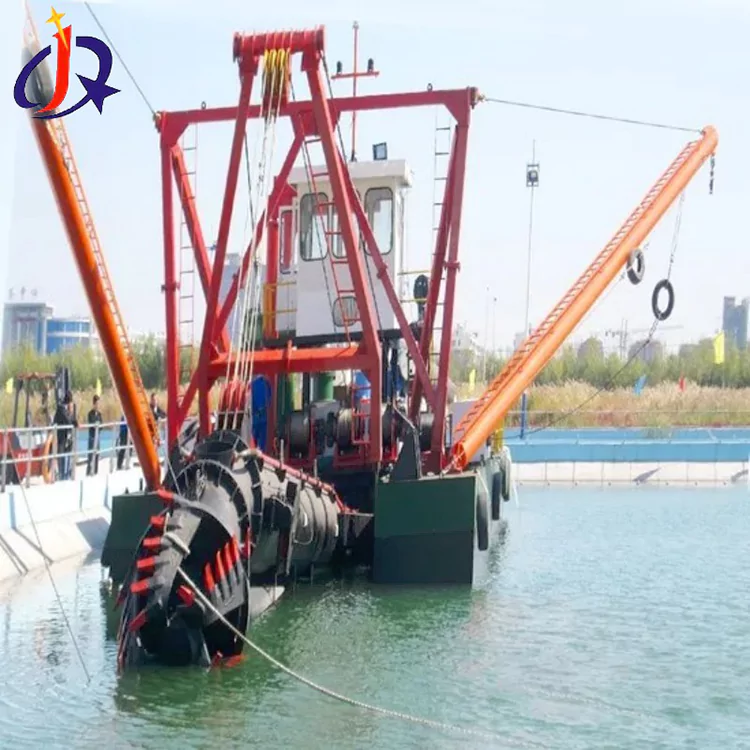

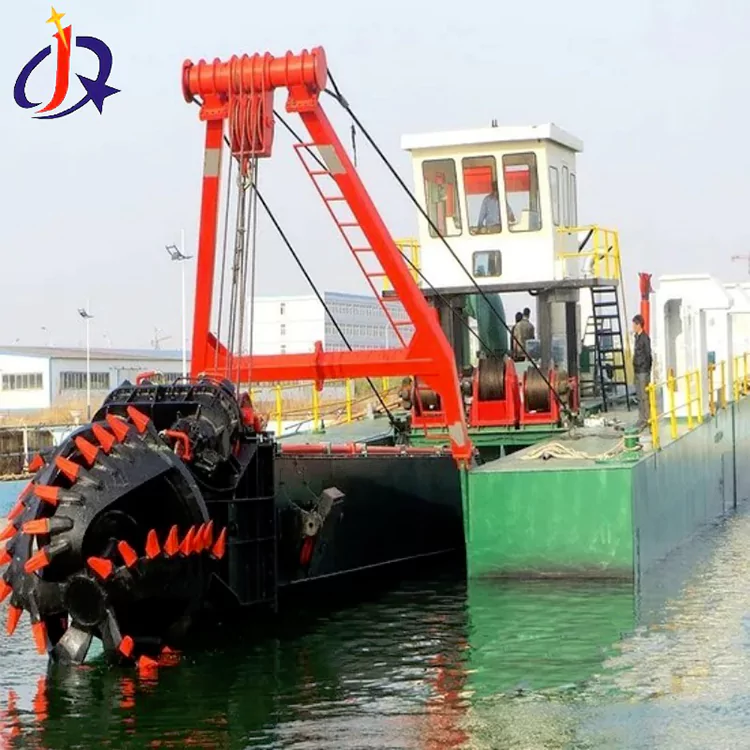

Capable of handling mud, clay, sand, gravel, and even soft rock (with special cutter heads).

Adapts to different soil conditions by changing the type of cutter head.

Precise Positioning:

Positioning steel piles are installed at the stern, while anchors or another pile are equipped at the bow. Precise swinging and lateral movement are achieved through the use of a ship-moving winch, ensuring a flat dredging section.

High Cost-Effectiveness:

Low cost per unit of dredged volume, making it suitable for port environments with shorter transportation distances and smaller waves.

Exceptional Long-Distance Transportation Capability:

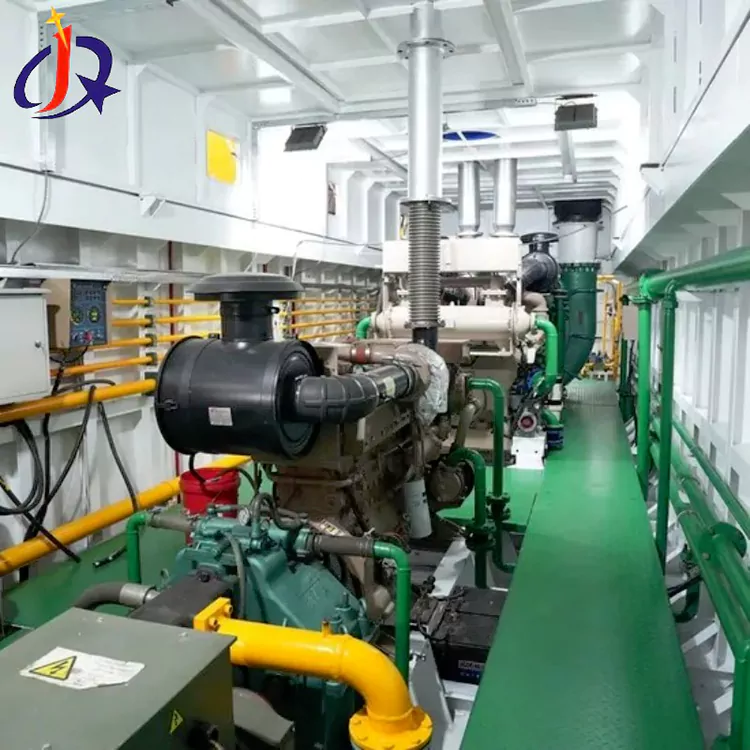

Equipped with high-power mud pumps, enabling remote transportation of dredged materials.

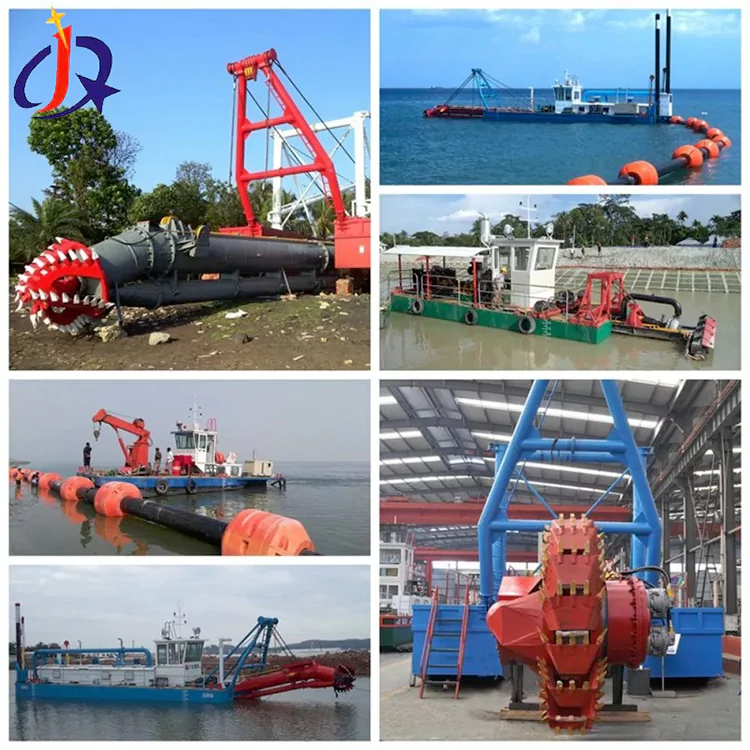

Cutter Suction Dredger for Port Dredging

Technical Parameters

Model	Dredging Depth	Discharge Distance	Main Engine Power	Dredged Mat.
CSD6024	14m	4000m	Cummins 1864KW	Hard Soil, Sand-Gravel, Coral Reef, Slurry, Coarse Sand
CSD5522	14m	1500-2000m	Cummins 1193KW-1342KW	Sand, Silt, Rock, Coral Reef
CSD5020	14m	1500m	Cummins 895KW-1193KW	Sand, Silt
CSD4518	14m	1500m	Cummins 895KW	Sand, Silt
CSD4016	14m	1500m	Cummins 721KW	Sand, Silt
CSD3010	10m	1000m	Cummins 447KW	Sand, Silt
CSD2508	8m	1000m	Cummins 298KW	Sand, Silt
CSD2006	6m	600m	Cummins 280KW	Sand, Silt
CSD1504	4-5m	300-400m	Cummins 115KW	Sand, Silt
